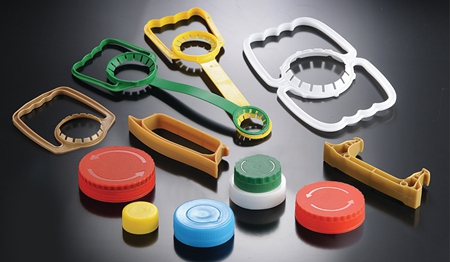

Aim of the technology developed by SMARGON is to reduce the cycle time to the bare minimum. SMARGON mold for production of closures for soft-drinks, mineral water, milk, juice, oil, spirit, cream and many other product are now among the most performing both for productivity and reliability.
We Offer
Neck Finish: different specifications, such as 26/22, 29/25, 30/25, PCO1810, PCO1881, 38/33, 48/41, etc
Cavitation: from 8 to 48 cavities.

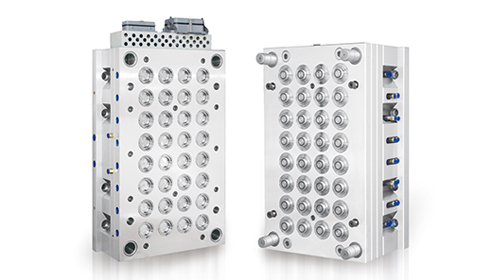

| Technical Data (As per sliding type theft-proof closure hot- runner mold) | ||||||||||||
| 28mm PCO1810 | 30/25 3Start | 38mm 3Start CF Bericap | 48/41 3Start | |||||||||
| Cavity Number | Dimension (mm) | Weight(kg) | Dimension (mm) | Weight(kg) | Dimension (mm) | Weight(kg) | Dimension (mm) | Weight(kg) | ||||
| 4 (1×4) | / | / | / | / | / | / | 350×350×360 | 350 | ||||
| 8 (2×4) | 400×350×335 | 280 | 400×350×335 | 280 | 410×350×400 | 970 | 410×350×400 | 450 | ||||
| 12 (2×6) | 500×360×360 | 360 | 500×360×360 | 360 | 550×360×400 | 1180 | 550×360×400 | 580 | ||||
| 16 (2×8) | 650×360×360 | 500 | 650×360×360 | 500 | 680×360×460 | 1450 | 680×360×460 | 750 | ||||
| 24 (3×8) | 700×400×400 | 700 | 700×400×400 | 700 | 750×450×480 | 2060 | / | / | ||||
| 32 (4×8) | 700×445×400 | 890 | 700×445×400 | 890 | / | / | / | / | ||||
| 48 (4×12) | 900×450×450 | 1100 | 900×450×450 | 1100 | / | / | / | / | ||||
| Note: Above specification are subject to change without prior notice. Dimension means Height × Width × Thickness. | ||||||||||||
● Hot-runner with pin-point gate
● Balance manifold with sheath heater
● Modular design sliding block group
● High-quality mold steel from professional manufacturer, including ASSAB, BOHLER, etc.
● High-precision CNC machining, such as CHARMILLES, MAZAK, HAAS, STUDER, etc.
● All insert tapers are grinded for high precision

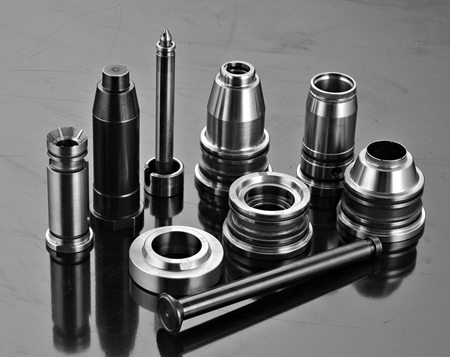

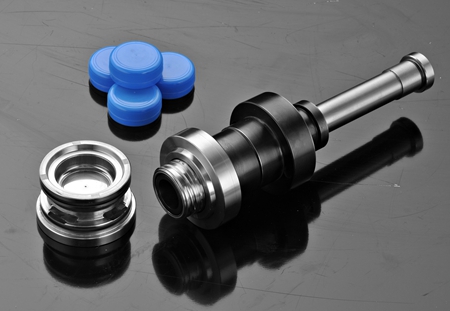

● Mold inserts are interchangeable
● Molds range up to 48-cavity
● Plates can be moved within the machine for easy maintenance and repair
● Fast injection speed up to 12 shots per minutes
